ICS Silver Lining
Multi-purpose cargo vessel
A geared multi-purpose ship with three holds, tween decks and cranes that combine for heavy lifts, built in 2005 and sailing under the Antigua and Barbuda flag.
Particulars
Identity
- IMO number
- 9314351
- Flag
- Antigua and Barbuda
- Built
- 2005
- Type
- MPCV (suitable for: bulk, container, dangerous cargo, heavy lift)
Dimensions
- Length overall
- 139.95 m
- Breadth moulded
- 21.50 m
- Depth moulded
- 11.65 m
- Draught
- 8.4195 m
- Deadweight
- 12,564 mt (summer)
- Gross / net tonnage
- 9,990 / 4,483
- Suez tonnage
- 10,395 / 8,469
- Keel to hatch top
- 13.40 m
- Keel to highest point
- 40.20 m
Capacity
- Cargo holds
- 3
- Hold capacity, tween-deck panels out
- No. 1 3,201.49 m³ · No. 2 11,019.81 m³ · No. 3 2,793.41 m³ · total 17,014.71 m³
- Hold capacity, panels fitted
- No. 1 3,201.49 m³ · No. 2 10,186 m³ · No. 3 2,583 m³ · total 15,970 m³
- Maximum uniform tank-top load
- 18 mt/m²
- Hatches
- 3
- Hatch covers
- MacGregor, pontoon type
- Hatch sizes
- 26.60 × 6.80 forward / 17.90 aft · 51.80 × 17.90 · 13.30 × 17.90
- Tween decks
- Pontoon, 8 in hold 2 and 2 in hold 3
- Containers in direct stow
- 766 TEU
- Containers at 14 tons homogeneous
- 538 TEU
Cargo gear
- Cargo gear
- MacGregor, hydro-electric
- Cranes
- 2 × 80/60/45/40 mt, port side
- Outreach beyond the rail
- 16.5-22.5-27.5-30.5 m at port side
- Combinable for heavy lift
- Yes, max. lifting 144 mt
Machinery
- Main engine
- Hitachi B&W 8S41MC
- Maximum output
- 8,200 kW / 136 rpm
- Bow thruster
- 500 kW
- Speed and consumption
- Abt. 14 knots on about 23 tons/day · abt. 17 knots on about 36 tons/day
- Bunker capacity HFO/MDO
- About 990 mt / 75 mt

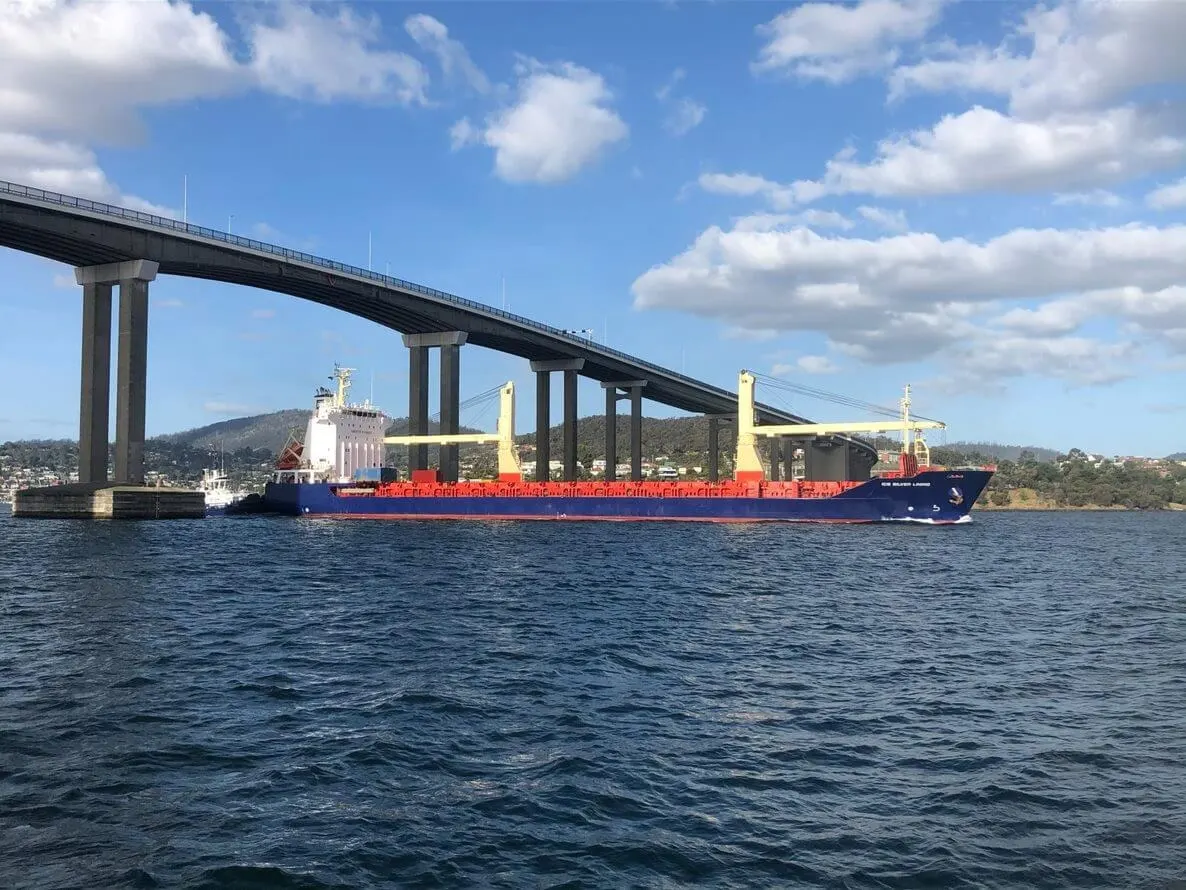

Passing under the bridge

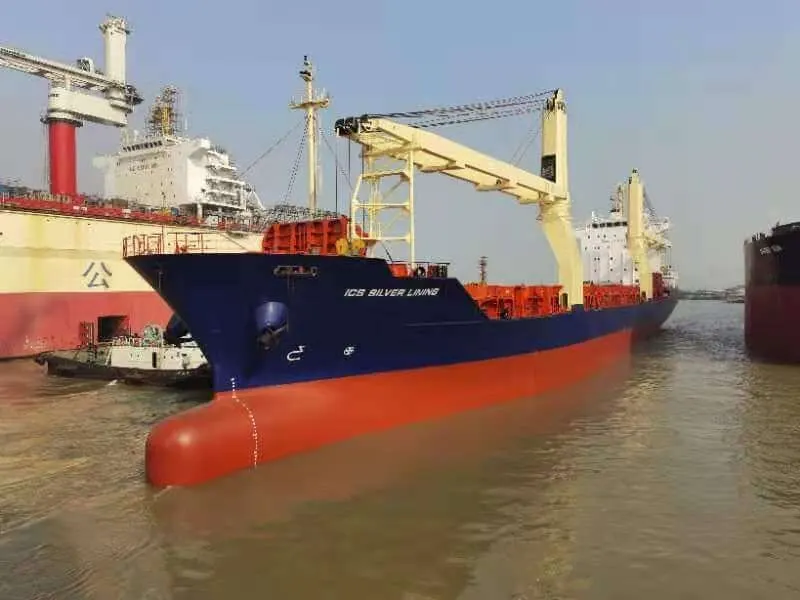

Loaded alongside

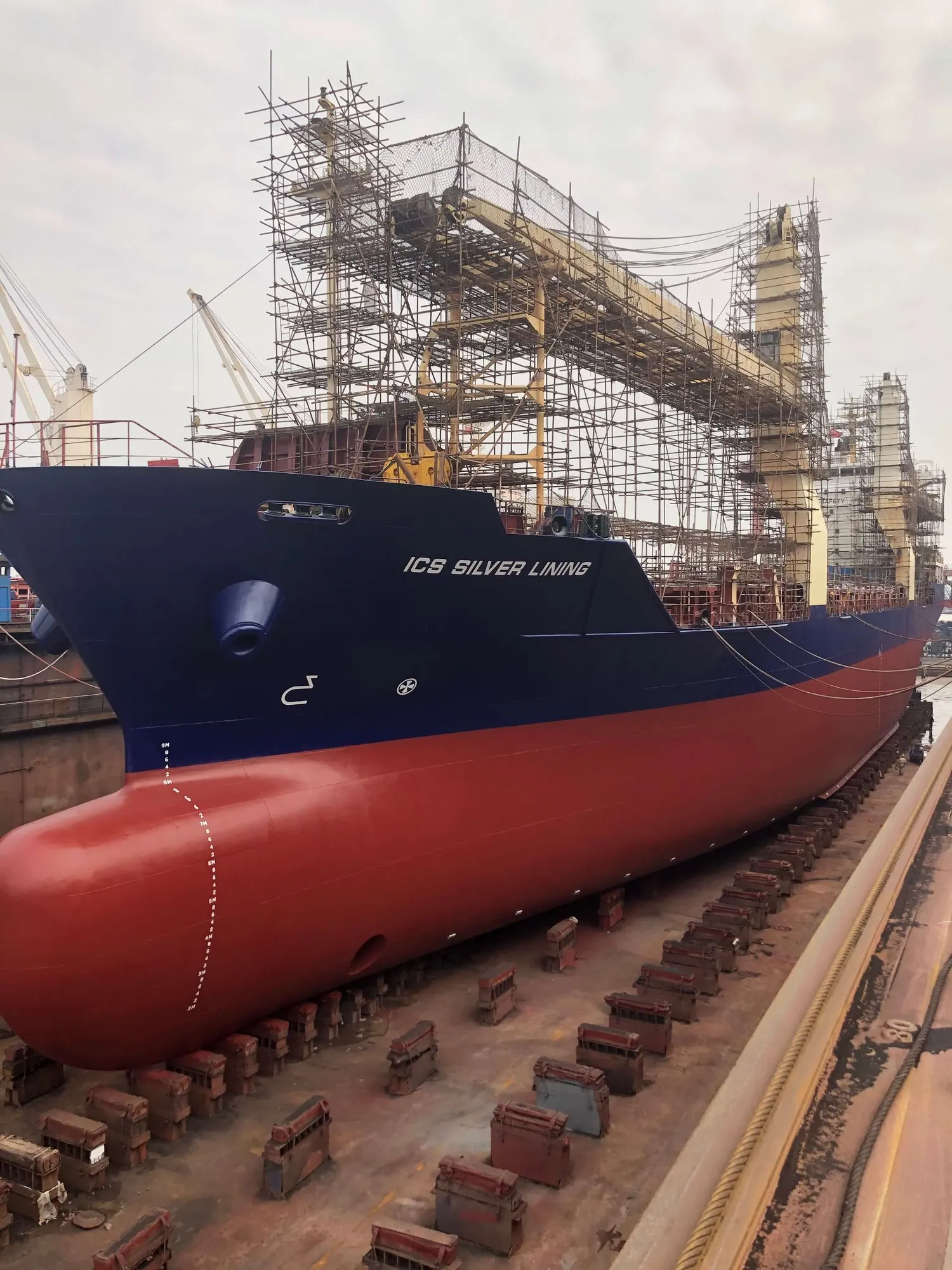

Bow in dry dock

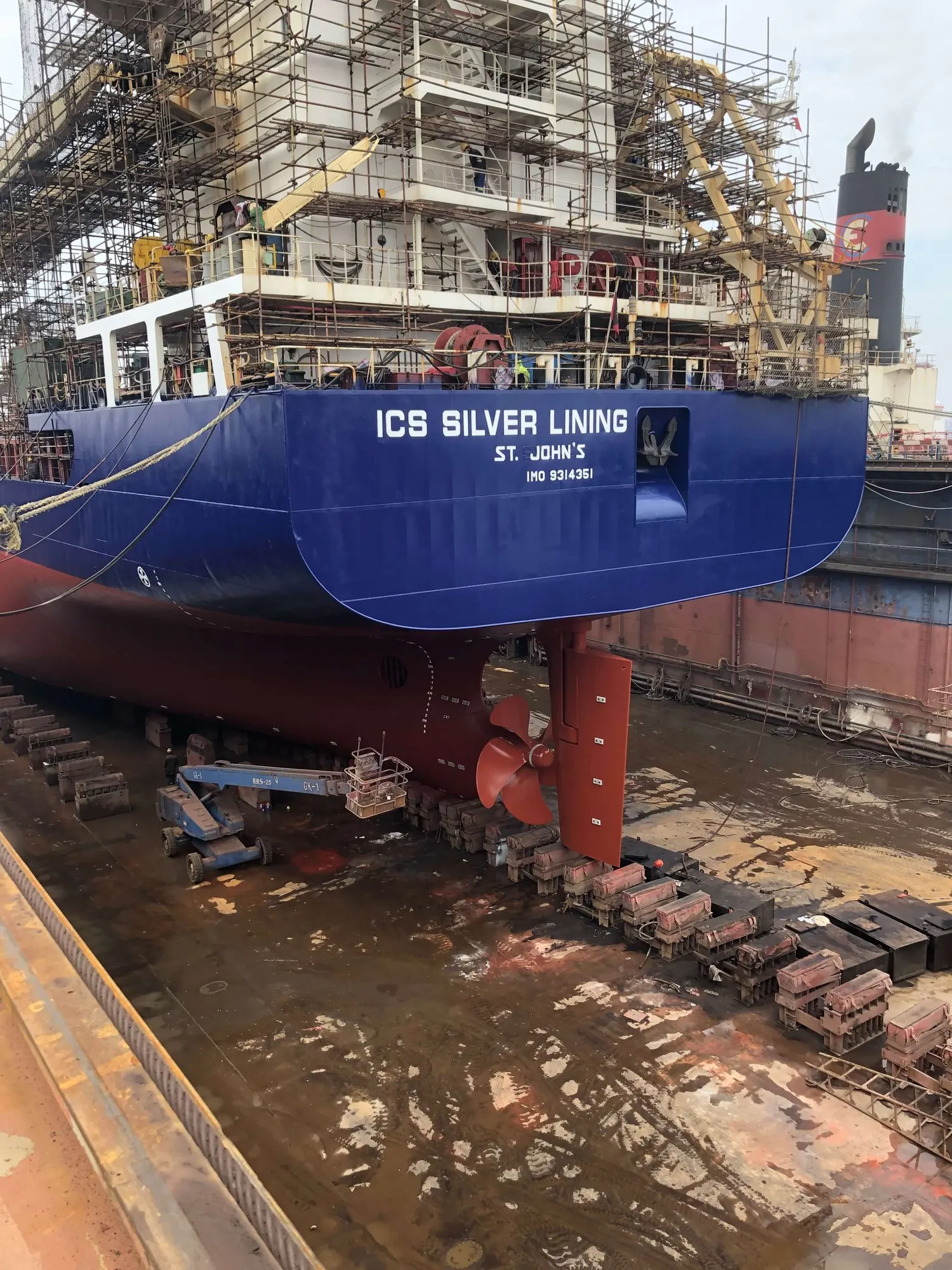

Stern in dry dock
